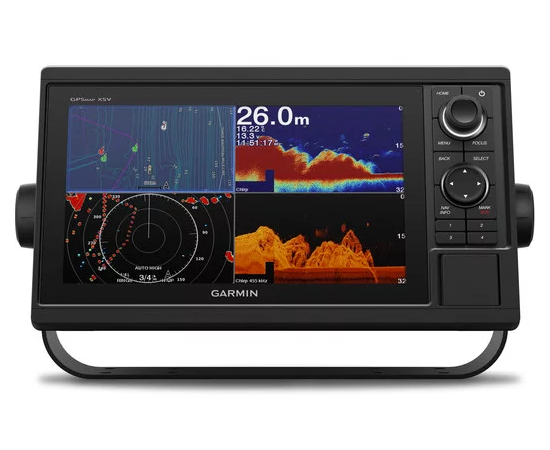

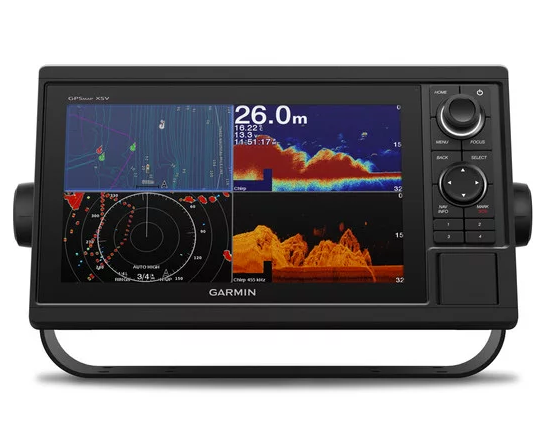

Garmin GPSMAP 1022xsv
10-inch Chartplotter/Sonar Combo Is All-in-1 Solution
- 10-inch color display with keypad interface and multifunction control knob
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Built-in single channel CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar and Panoptix™ support (transducers sold separately)
- Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
- Supports optional BlueChart® g3 Vision® premium charts
Experience an advanced all-in-1 solution with our 10-inch GPSMAP 1022xsv keyed combo. It has built-in support for Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü. It also has built-in support for Panoptix all-seeing sonar and premium Garmin sonar modules (transducers sold separately). Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Complete Network Sharing
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.
Built-in ANT® Connectivity
The Ultimate Connected Boating App
Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain™ app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.
Built-in Sonar Capabilities
Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. Comes with built-in Garmin 1 kW CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).
Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.
Heading, Position Refreshed 10 Times per Second
Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.
Upgrade to the Best Maps on the Water
Upgrade to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra maps. These add features such as high-resolution relief shading of bottom structure — which provides more 3-D relief than contours alone — satellite imagery and more.
Quickdraw Contours to Create Your Own HD Maps
Instantly create personalized HD fishing maps on screen with 1-foot contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.
Built-in SailAssist Features
To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.
GPX Waypoints Transfer
If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.
¹Auto Guidance is for planning purposes only and does not replace safe navigation operations.
iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance.
|FIZINIAI MATMENYS||12.5" x 7.3" x 2.7" (318 x 185 x 69 mm)|
8.8" x 4.9"; 10.1" diagonal
(22.4 x 12.5 cm; 25.7 cm diagonal)
|EKRANO SKIRIAMOJI GEBA||1024 x 600 pixels|
|EKRANO TIPAS||WSVGA display|
4.1 lbs (1.85 kg)
|PRALAIDUMO VANDENIUI SKALĖ||IPX7|
|MONTAVIMO GALIMYBĖS||Bail or flush|
Max power usage at 10 Vdc: 32.4 W
Typical current draw at 12 Vdc: 1.9 A
Max current draw at 12 Vdc: 2.7 A
|ANTENA||Vidinis arba išorinis, naudojant NMEA 2000|
|PERDAVIMO GALIA||1 kW traditional; 1 kW CHIRP|
|IMTUVAS||10 Hz high-sensitivity|
|„GARMIN MARINE NETWORK ™“ PRIEVADAI||
Žemėlapiai ir atmintis
|IŠ ANKSTO ĮKELTI ŽEMĖLAPIAI||None|
|GALIMA NAUDOTI DUOMENŲ KORTELES||2 SD™ cards|
|PĖDSAKŲ ŽURNALAS||50,000 points; 50 saved tracks|
Lauko pramogų funkcijos
|POTVYNIŲ IR ATOSLŪGIŲ LENTELĖS||Yes|
|SUDERINAMAS SU „GARMIN RADAR“||Yes|
|SUDERINAMAS SU „GARMIN SONAR“||
|SUDERINAMA SU „GARMIN SMARTMODE“ (PRITAIKOMOS STEBĖJIMO NUOSTATOS)||Yes|
|PALAIKO AIS (STEBI NURODYTŲ LAIVŲ PADĖTĮ)||Yes|
|PALAIKO DSC (RODO PADĖTIES DUOMENIS IŠ DSC PALAIKANČIO VHF RADIJO)||Yes|
|SUDERINAMAS SU „GARMIN METEOR™“ GARSO SISTEMA||Yes|
|PALAIKO SU „FUSION-LINK ™“ SUDERINAMUS RADIJO IMTUVUS||Yes|
|„GSD™ BLACK BOX“ SONARO PALAIKYMAS||Yes|
|„GCV™ BLACK BOX“ SONARO PALAIKYMAS||Yes|
|SUDERINAMAS SU „ACTIVECAPTAIN“||Yes|
|SUDERINAMAS SU BELAIDŽIU NUOTOLINIU VALDYMU||Yes|
Sonaro funkcijos ir specifikacijos
|GALIMA NAUDOTI DVIEJŲ DAŽNIŲ (50/200 KHZ) SONARĄ||Yes|
|GALIMA NAUDOTI DVIEJŲ SPINDULIŲ (77/200 KHZ) SONARĄ||Yes|
Yes with CHIRP (built-in)
|MAKSIMALUS GYLIS||5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)|
|DUGNO STEBĖJIMAS (RODO DUOMENIS NUO DUGNO Į VIRŠŲ)||Yes|
|VANDENS TEMPERATŪROS ŽURNALAS IR GRAFIKAS||Yes|
|SONARO ISTORIJOS PERSUKIMAS ATGAL||Yes|
|SUDERINAMA SU NMEA 2000®||Yes|
|KEITIKLIO ADATĖLIŲ NUMERIAI||12|
|NNMEA 0183 ĮVESTIES PRIEVADAI||
|NMEA 0183 IŠVESTIES PRIEVADAI||
- GPSMAP 1022xsv chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
