Humminbird HELIX 7 CHIRP SI GPS G4 echolotas

Sutaupykite 21%
755.00
595.00
Sutaupote: 160.00 €
Sandėlyje
HELIX 7 CHIRP SI GPS G4
+
GamintojasHumminbird Helix modifikacijaHELIX 7 CHIRP SI GPS G4

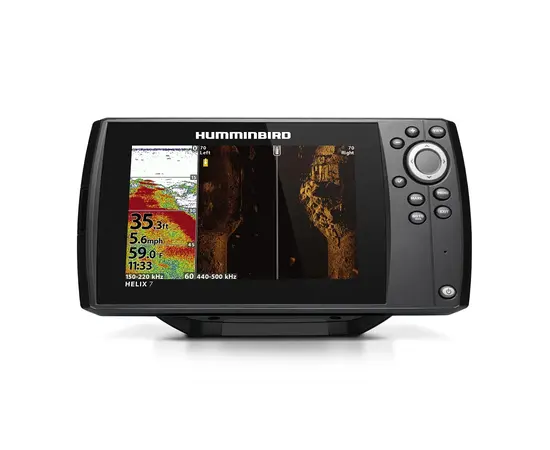

Humminbird echolotas HELIX 7 CHIRP SI GPS G4

HELIX 7 CHIRP SI GPS G4 echolote yra dvigubo spektro CHIRP sonaras, CHIRP Side Imaging, CHIRP Down Imaging, „AutoChart Live“, vidinis GPS ir „Humminbird Basemap“. Atnaujintas didelės raiškos 7 colių ekranas suteiks jums geriausią vaizdą iš daugelio iš anksto įkeltų padalinto ekrano peržiūros parinkčių, todėl niekada nepraleisite žuvies.

  • Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
  • CHIRP Side Imaging: Filter out noise and clutter for a clearer view of the world below and out to each side of your boat. CHIRP Digital Sonar processing of Side Imaging sonar means that you'll see fish and structure to the left and right of your boat, so you can spend less time searching and more time catching.
  • CHIRP Down Imaging: Filter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging sonar means that you'll see great detail to make finding the fish simple and easy.
  • Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
  • Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
  • Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
  • AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.
  • Includes control head, transom-mount transducer, power cable, gimbal mounting bracket and mounting hardware.
  • 2-Year Limited Warranty
Model HELIX 7 CHIRP SI GPS G4
Product Code 411920-1
Series HELIX
Display Size - Diagonal 7"
Display Pixel Matrix 1024H x 600V
Transducer Included XNT 9 HW SI T
Compatible With Minn Kota US2 Sonar, AIS, AutoPilot
Features Down Imaging, Built In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping
Memory Card Slot Single Micro SD
Sonar-Standard Dual Spectrum CHIRP, CHIRP Down Imaging, CHIRP Side Imaging
Sonar-Coverage 20°, 42°, 60° & (2) 86° @ -10dB
Sonar-Optional 53 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
Sonar-Frequencies Supported 50/83/200/455 kHz
Depth-Sonar 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
CHIRP - Imaging Frequencies Supported 455 kHz (420-520 kHz)
Depth-Down Imaging 400 ft (455 kHz)
Range-Side Imaging (Side-To-Side) 800 ft (455 kHz)
Interface Keypad Control
Power Draw 800 mA
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 4000 Watts
Power Output RMS 500 Watts
Screen Snap Shot Included
Sonar Recording Included
Mount-Standard Gimbal
Mount-Standard Size 10.54" W x 5.8" H x 3.68" D
Mount-Optional In-Dash Mounting Kit
Mount-Optional Size 10.54" W x 5.44" H x 1.13" D
Transducer Mount Location Transom
GPS Chartplotting Included
GPS Receiver Internal
GPS Trackplotting Included
Waypoints, Routes, Tracks/Points 2,750, 47, 50/20,000
360 Imaging Compatibility No
MEGA Live Compatibility No
Humminbird Basemap Included
LakeMaster Compatibility Yes
CoastMaster Compatibility Yes
Navionics Gold/HotMaps Compatibility Yes
Navionics Platinum+ Compatibility Yes
Platinum Compatibility Yes
Minn Kota i-Pilot Link Compatibility No
Minn Kota Talon Shallow Water Anchor Compatibility No
Radar Compatibility No
5-Port Ethernet Switch Compatibility No
AIS Compatibility Optional
Autopilot Compatibility Yes
Heading Sensor GPS Compatibility Yes
NMEA2000 Not Supported
Target Separation 2.5"
Upgradable Software Yes
View Preset Keys No
X-Press Menu System Yes
Custom Digital Readout Yes
Custom View Selections No
Display Colors Grayscale 16-Bit
Display Type Color TFT
Speed Included
Temperature Built In
Temperature Alarm Yes
Temperature Graph Yes
HDMI Compatible No
Warranty Two-Year Warranty
Helix modifikacija
HELIX 7 CHIRP SI GPS G4

Nėra atsiliepimų
