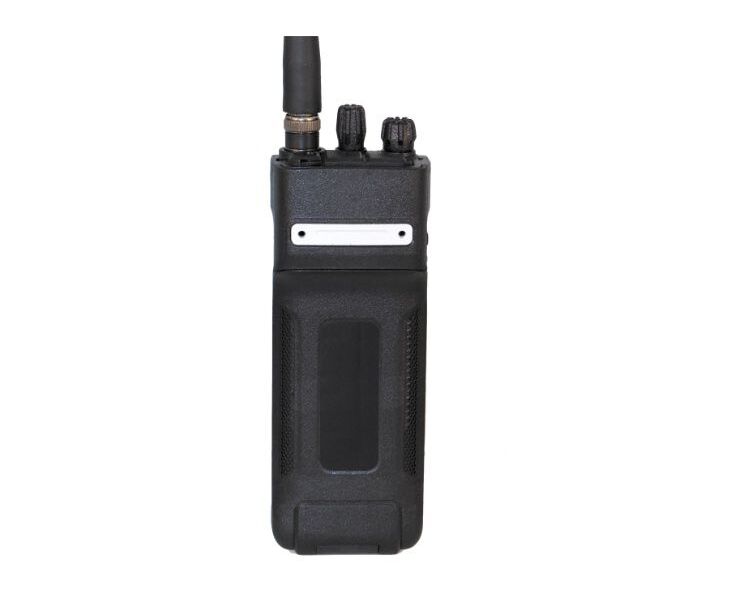

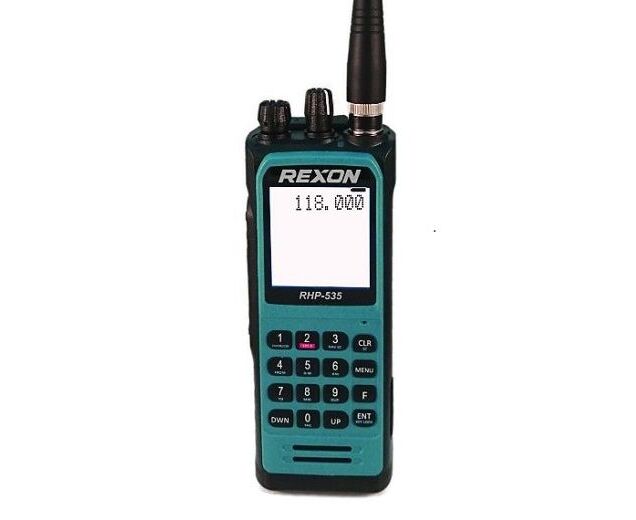

REXON RHP-535
Please sign in so that we can notify you about a reply
REXON RHP-535, RHP-535 - prekės aprašymas
Features
- 2.3" oversized screen and Type C backup power.
- VOR navigation with CDI760 COM channels and 200 NAV channels.
- 10 weather channels.
- 100 memory channels.
- 121.5MHz emergency frequency recall.
- Semi-duplex operation.
- Scanning of COM and NAV bands.
- Dual watch function.
- One touch selection of active and standby frequency.
- Side tone function.
- LCD back light.
- Optional Bluetooth.
- Optional VOR.
RHP-535 Specifications
General
| Frequency Range | TX 118.000MHz to 136.975MHz | |
|---|---|---|
| RX 108.000MHz to 136.975MHz | ||
| Weather Channels：161.650~163.275MHz (10 channels USA only) |
||
| Channel Spacing | KHz | 25KHz/8.33KHz |
| D.C. Supply Voltage | V | Alkaline Battery: 9.0V |
| Li-ion Battery: 7.4V. 3300mA | ||
| USB Type C: 9.0V 2A | ||
| Memory Channels | 20 | |
| Display | mm | 45.4 x 43.9 (B&W) |
| Frequency Stability | ppm | ± 1.0 |
| Type Of Emission | 6K00A3E (AM), 16K0G3E (FM) | |
| Anttenna Impedance | ohm | 50 |
| Speaker Impedance | ohm | 8 |
| External Microphone Impedance | ohm | 150 |
| NAV And COM | Yes | |
| VOR | Yes | |
| Dimensions | mm | 176 x 62 x 43.5 |
| Weight | g | 340 |
| Operation Temperature Range | °C | -20 to +55 |
| Relative Humidty | % | 70 ~ 90 |
| Average Battery Duty Life @ 5-5-90 Duty Cycle |
hr | Without Power Save ≧ 22 (With BP-33L 3300mA) |
| Bluetooth | Optional | |
| EAR / MIC Jack | STD PJ-055 / PJ-68 |
Transmitter
| RF Output Power | W | 1.5W (CW), 5.0W (PEP) Typical |
|---|---|---|
| Current Drain | mA | ≦ 900 |
| Modulation Type | Low Level Modulation | |
| Modulation Limiting | % | 70 ~ 100 |
| Modulation Depth | % | 85 to 95 |
| Conducted Spurious Emissions | dBm | < 1GHz ≦ -46dBm, > 1GHz ≦ -40dBm |
| Harmonics | dBm | < 1GHz ≦ -36dBm, > 1GHz ≦ -30dBm |
| Audio Harmonic Distortion | % | ≦ 10 (@85% ± 3dB Modulation) |
| Hum & Noise Ratio | dB | ≧ 40 @30% Modulation |
| Adjacent Channel Power | dB | ≧ 60 @25KHz |
| ≧ 50 @8.33KHz |
Receiver
| Configuration | Double Conversion Super-heterodyne | |
|---|---|---|
| 1st IF (46.35MHz), 2nd IF (450KHz) | ||
| Sensitivity (30% Modulation) | dB | AM ≦ 0.55uV @6dB S/N 1KHz |
| ≦ 0.65uV @12dB Sinad With CCITT | ||
| FM ≦ 0.5uV (@12dB Sinad) | ||
| Squelch Sensitivity | dB | AM ≦ 0.25uV |
| FM ≦ 0.3uV | ||
| Adjacent Channel Rejection | dB | ≧ 60dB |
| Effective Acceptance Bandwidth | dB | @6dB ≧ ± 8.5KHz (25KHz) |
| @6dB ≧ ± 2.8KHz (8.33KHz) | ||
| Intermodulation Response Rejection | dB | ≧ 64 |
| Cross Modulation Rejection | dB | ≧ 70 |
| Blocking | dB | ≧ 70 |
| Conducted Spurious Emission | dBm | ≦ -57 from 9KHz to 1GHz |
| ≦ -47 from 1GHz to 4GHz | ||
| Hum & Noise Ratio | dB | ≧ 40 @30% Modulation |
| Spurious Response Rejection | dB | ≧ 70 |
| Max Audio Output @10% Distortion | W | ≧ 0.8 (8Ω) ≦ 350mA |
| Audio Distortion | % | ≦ 5 |
| Standby Current Drain | mA | 85 (without power save) |
