LOWRANCE GPS Antena Point-1 su kompasu

312.00
Sandėlyje

We (lizard.lt) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to info@lizard.lt.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

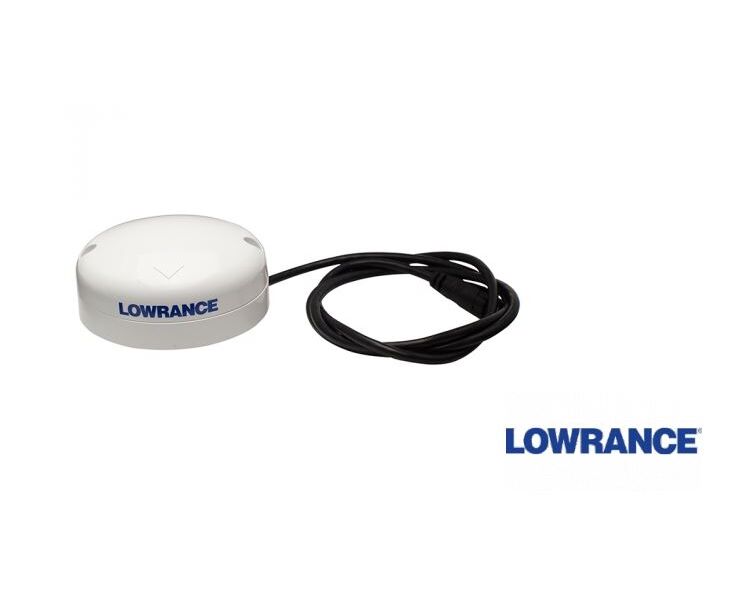

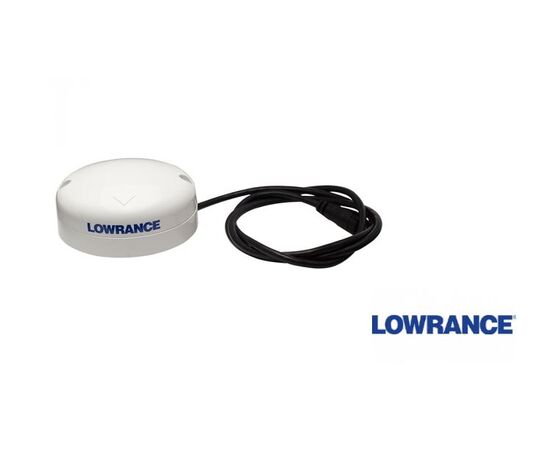

Point-1 Antenna

PRECISION GPS/GLONASS RECEIVER WITH ELECTRONIC COMPASS

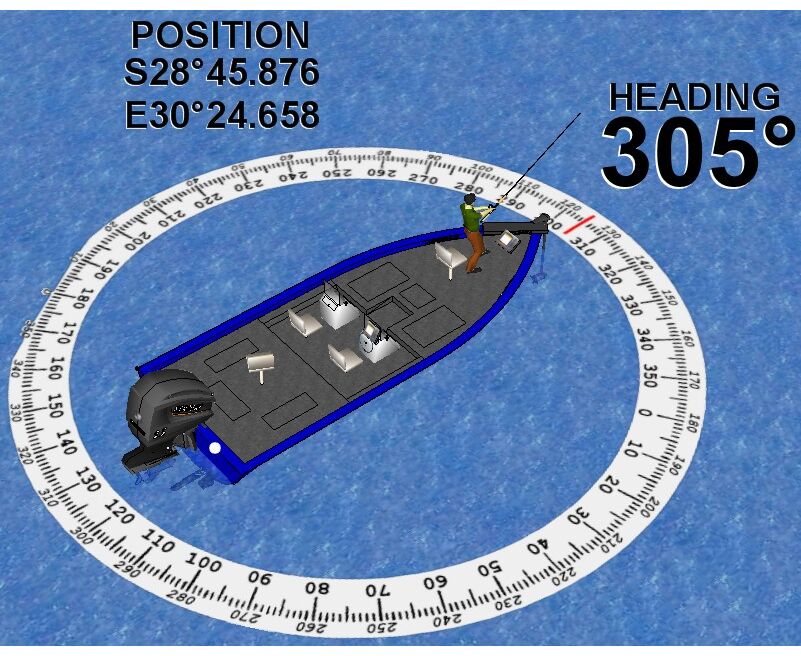

The Lowrance Point-1 is the ideal position and heading device. The Point-1 provides extremely accurate and rapid boat position and speed updates. In addition – unlike other position-only antennas – the Point-1 provides heading for accurate boat direction at any speed and for radar/chart overlay.The Point-1 easily connects to any HDS Gen2, HDS Gen2 Touch or Elite-7 display or any NMEA 2000® network. It is fully waterproof and can be pole or surface mounted on any boat.

KEY FEATURES

  • NMEA 2000® position and heading sensor
  • Supports GPS and GLONASS, Galileo-capable with future software update
  • Supports SBAS including WAAS/EGNOS/MSAS
  • 10 Hz updates for smooth and accurate location
  • Integrated electronic compass provides 10Hz heading for chart stabilization and radar overlay, plus accurate course over ground even at low speeds
  • Compact, rugged design for all marine environments and fully waterproof
  • Includes spat/pole mount
  • Not recommended for use with MARPA funtionality of Radar

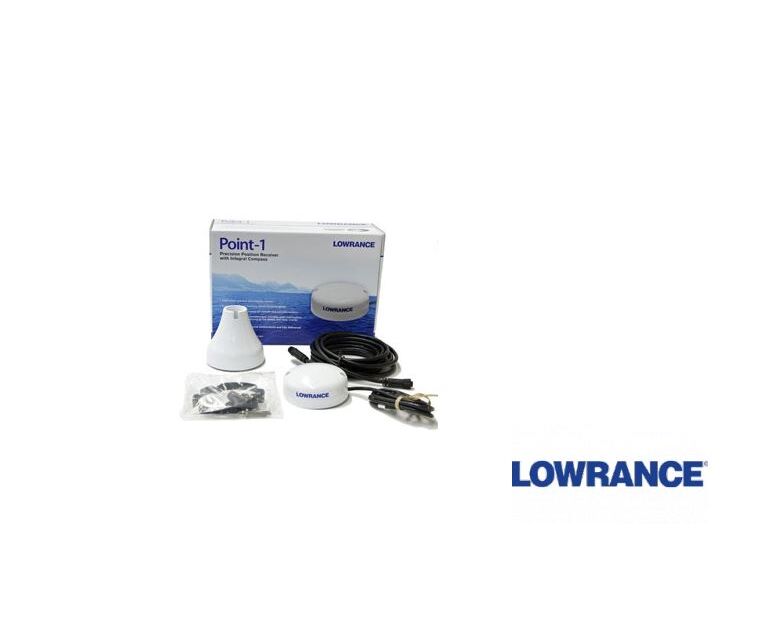

WHAT’S IN THE BOX

  • Antenna/4' cable
  • T connector
  • Spat/pole mount
  • Mounting hardware
  • Gasket seal
  • Install guide

Specifications

Networking

NMEA 2000 Certified Yes
Connectors NMEA 2000 Micro C

Power

Power Supply (Supply Voltage) 9v-18v

GPS Navigation

GPS Receiver Channels 32
Heading Accuracy 3 degrees
Horizontal Accuracy 5 m
Rate of Turn 3 degrees
Satellite Reacquisition <5 seconds
Start-up Time <3 seconds
Cold Start <50 seconds
Picth/Roll Angle @30 degrees 1 grade error

Technical/Environmental

Diameter 90 mm (3.54in)
Product Height 38 mm ( 1.50in)
Product Weight 0.3 lbs (approximately)
