General |
|
| FREQUENCY | 77/200 kHz |
|---|---|
| POWER | 500 W |
| BEAMWIDTH | 45°/15° |
| MAXIMUM DEPTH | 1,900 ft. |
| DEPTH/SPEED/TEMPERATURE | Depth and Temperature |
| NUMBER OF PINS | 4-pin |
| CABLE LENGTH | 30 ft. |
| SUPPORTED DEADRISE/TRANSOM ANGLES | 0°-70° degree transom |
Echoloto sonaras Garmin Dual Beam 4 kontaktų

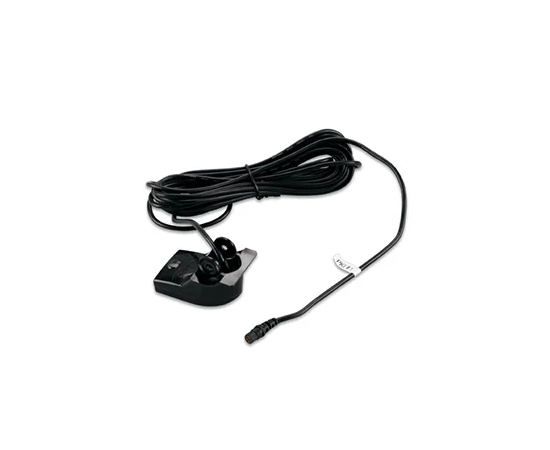

This dual beam transducer replaces the one included with your echo™ series fishfinder. A 500 W 4-pin transducer; an operating frequency of 77 to 200 kHz; a beamwidth of 45 to 15 degrees; and mounts on a 0 to 70 degree transom.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
