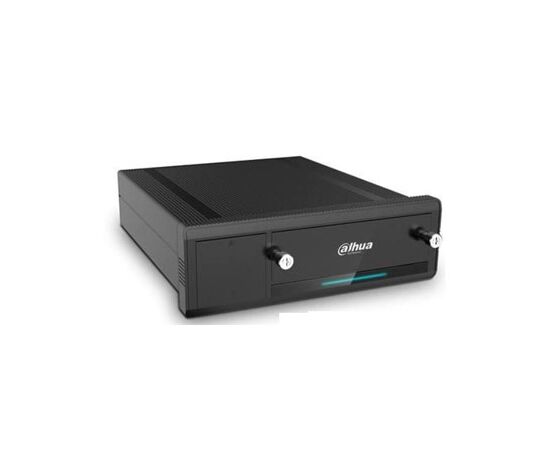

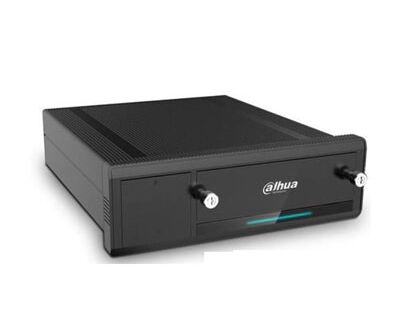

Dahua HDCVI auto įrašymo įrenginys 8kam 3G / 4G/ Wi-Fi / GPS, 8 kn. 1080P, 2HDD

Features: • Support HDCVI/Analog Video input • H.264 dual-stream video compression • Support 8 channel 1080P realtime recording • VGA/TV simultaneous video output • Support 2 SATA HDD, 2 USB2.0 • Aviation connectors adopted • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS Technical Specifications: System • Main Processor Embedded microprocessor • Operating System Embedded LINUX Video • Input 8 channel Standard • Analog NTSC(525Line), PAL(625Line) • HDCVI 1080P HDCVI Camera Audio • Input 8 channel • Output 1 channel • Two-way Talk 1 channel Input, 1 channel Output Display • Interface 1VGA, 2TV • Resolution 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 • Display Split 1/4/8/9 • Privacy Masking 4 rectangular zones (each camera) • OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Recording • Video/Audio • Compression H.264 / G.711 • Record Rate Main Stream 8ch@1080P (1~25/30fps) Sub Stream D1(1~6/8fps)/CIF(1~25/30fps) • Bit Rate 48~8192Kb/s • Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop • Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec Video Detection & Alarm • Trigger Events Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips • Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank • Alarm Input 6 channel • Pulse Input 1 channel • Relay Output 2 channel Playback & Backup • Playback 1 • Search Mode Time/Date, Alarm, Motion Detection & Exact search (accurate to second) • Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom • Backup Mode USB Device / Network Network • Ethernet RJ-45 port (10/100M) • Wireless Network Built-in 3G/ 4G/Wi-Fi module • GPS Built-in high accurate GPS module • Network Functions TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server • Max. User Access 10 users • Smart Phone iPhone, iPad, Android, Windows Phone Storage • Internal HDD 2 SATA ports • Memory Slot 1 SD card • Auxiliary Interface • USB 2 ports , USB2.0 • RS232 1 port, For PC communication & Keyboard • RS485 1 port, For PTZ control CAN Support • Heater Optional General • Power Supply 6V~36V • Power Consumption <15W(with HDD) Working Environment • -10°C ~+60°C / 10%~95%RH / 86~106kpa • Dimension(W×D×H) 178mm×220mm×50mm • Weight 2.1KG(with HDD) • Vibration-proof 5Hz~200Hz: X / Y / Z each direction 5.5 hours 5Hz~5.5Hz: Vibration amplitude 12.7mm 5.5Hz~200Hz: 15m/s2
