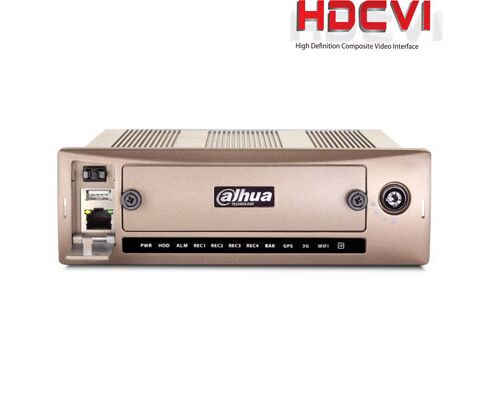

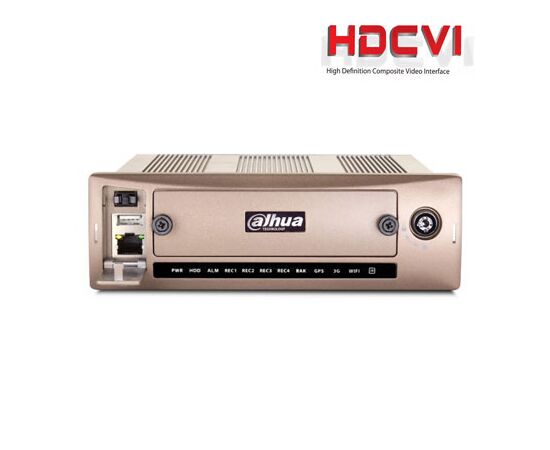

Dahua HDCVI auto įrašymo įrenginys 4kam 3G / 4G/ Wi-Fi / GPS, 2 kn. 1080P + 2 kn 720P

Features: • Support HDCVI/Analog Video input • H.264 dual-stream video compression • Support 2 ch 1080P+2 ch 720P realtime recording • VGA/TV simultaneous video output • Support 1 SATA HDD, 2 USB2.0 • Aviation connectors adopted • Multiple monitoring: Web viewer, CMS(DSS) & DMSS Technical Specifications: System • Main Processor Embedded microprocessor • Operating System Embedded LINUX Audio and Video • Input 4 Channel (Don’t support audio in when connecting analog cameras) • Two-way Talk 1 Channel Input, 1 Channel Output, RCA Display • Interface 1VGA, 2TV • Resolution 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 • Display Split 1/4 • Privacy Masking 4 rectangular zones (each camera) OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Recording • Video/Audio Compression H.264/G.711 • Resolution 2ch@1080P+2ch@720P(1~25/30fps) • Bit Rate 48~8192Kb/s • Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop • Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec,Post-record: 10~300 sec Video Detection and Alarm • Trigger Events Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips • Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank • Alarm input 7 channel • Relay Output 2 channel Playback and Backup • Playback 1 • Search Mode Time/Date, Alarm, Motion Detection & Exact search (accurate to second) Playback Function • Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom • Backup Mode USB Device/Network Storage • Internal HDD 1 SATA Ports, Up to 2 TB capacity SD card 1 SD card, Up to 128 GB Network • Ethernet RJ-45 Port (10/100Mbps) • Network Function TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server • Max. User Access 128 users • Smart Phone iPhone, iPad, Android Auxiliary Interface • USB 2 Ports (1 rear), USB 2.0 • RS232 1 Port, for PC Communication and Keyboard • RS485 1 Port, for PTZ Control • Heater Optional Electrical • Power Supply DC 6V~36V • Power Consumption <15W (Without HDD) Environmental • Operating Conditions -30°C (with heater)~ +60°C (+14°F ~ +131°F) • Storage Conditions -30°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH • Construction • Dimensions 178mm×220mm×50mm (7.0" x 8.7" x 2.0") • Net Weight 2.1kg (4.6 lb) (without HDD) Certifications • CE FCC • EN50155 ISO16750
