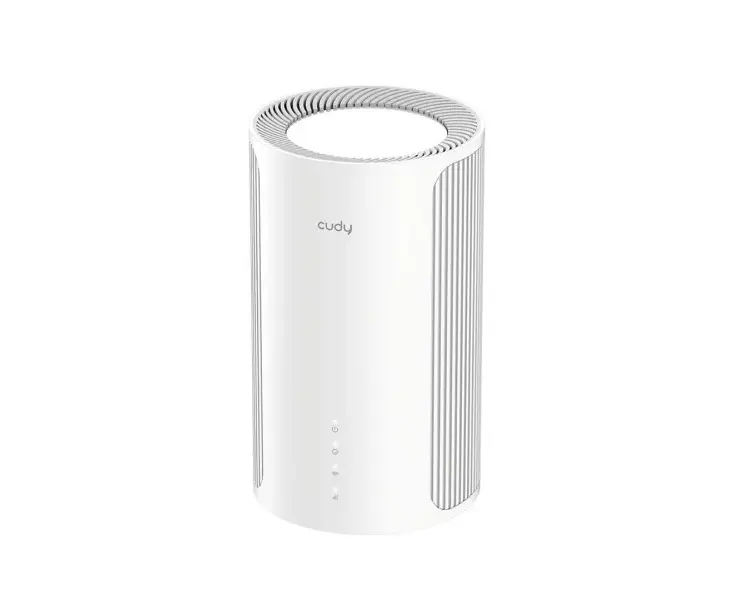

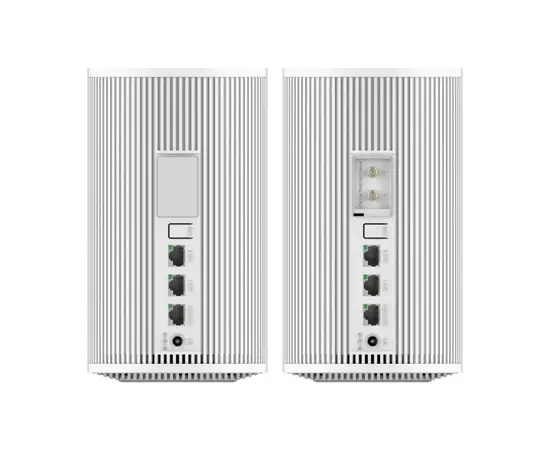

5G/4G maršrutizatorius CUDY P4
5G/4G maršrutizatorius CUDY P4, CUDY-P4 - prekės aprašymas
| Modelio versija | P4 1.0 | |
|---|---|---|
| CPU | CPU Details | 1.0 GHz Dual-core, ARM Cortex-A53 |
| Atmintis | Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/RAM | 512 MB (4 Gbit) DDR3 | |
| Ryšiai | Cellular Standards |
|
| Cellular Antennas | 6× Internal, 2× SMA Connectors for Customized Antennas | |
| Detachable Cellular Antennas Connector | SMA Female | |
| SIM Options |
|
|
| Available Versions | EU | |
| EU Versija | Suitable Region | Europe, Middle East, Africa, Asia-Pacific (Exc. JP, CN), Brazil |
| Max DL Speed | 3.4 Gbps (NSA), 2.4 Gbps (SA) | |
| Max UL Speed | 550 Mbps (NSA), 900 Mbps (SA) | |
| Advanced | DL/UL 4CA, DL 4×4, UL 2×2 MIMO | |
| Cellular Bands | 5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78 LTE-FDD: B1/3/5/7/8/20/28/32/71 LTE-TDD: B38/40/41/42/43/71 WCDMA: B1/5/8 |
|
| WiFi | 5 GHz Wi-Fi Speed | 2402 Mbps |
| 2.4 GHz Wi-Fi Speed | 574 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | Internal | |
| Beamforming | True | |
| FEM or PA/LNA |
|
|
| Range Performance | Max: 170 m (558 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
|
| Wall Performance | Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') |
|

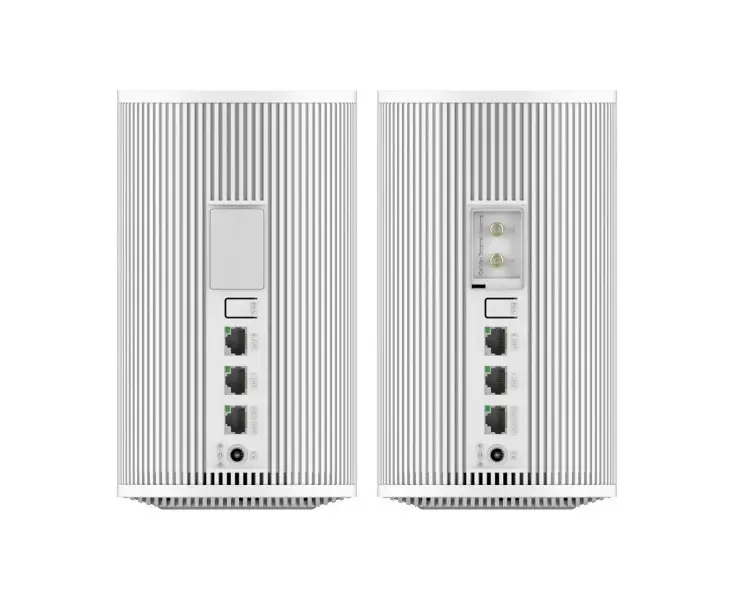

| Mygtukai | Physical Buttons |
|
| Gigabit RJ45 Ports | 3 | |
| Ethernet Notes | 1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports | |
| LED |
|
|
| Power Input | DC Jack | |
| Maitinimas | Power Methods | DC |
| DC Input | 12V 2.5A | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 2.5A DC |
|
| Max Power Consumption (W) | 21.7W | |
| Reliability | EMC | ESD: Contact: 4kV; Air: 8kV |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
|
| Sertifikavimas | FCC, CE | |
| Dydis, svoris | Dimension | Φ116×202 mm |
| Product Weight | 656.0 g | |
| Installation | Desktop | |
| Pakuotę sudaro |
|
|
