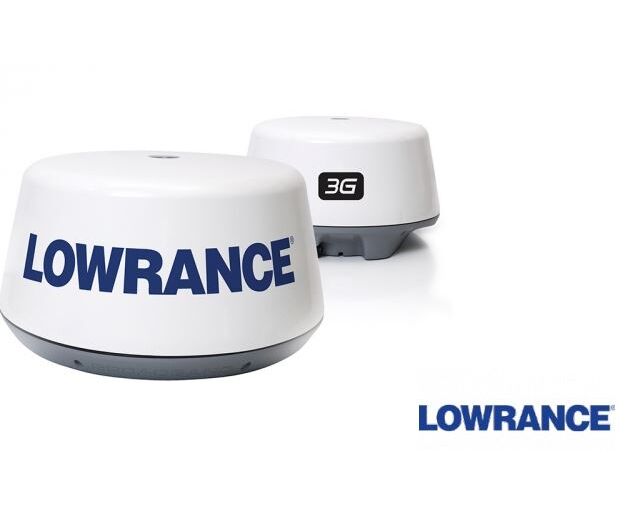

3G Broadband Radar

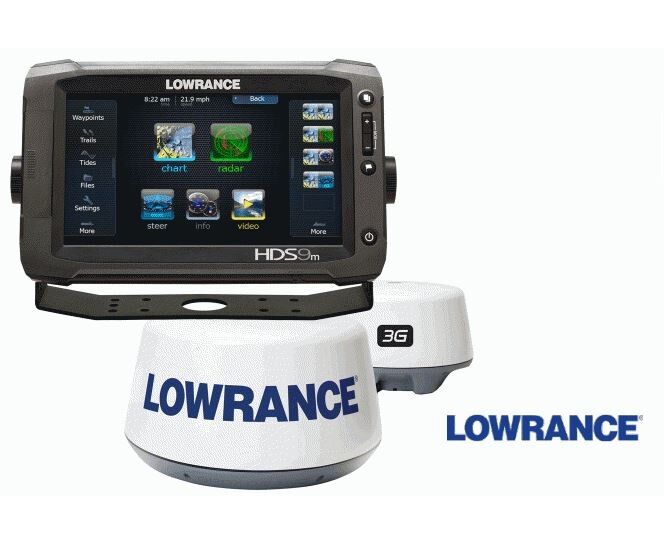

The new Lowrance Broadband 3G™ Radar for HDS goes more than the extra nautical mile, now with 30% more range! Featuring Frequency Modulated Continuous Wave (FMCW) technology, Lowrance Broadband Radar innovation delivers superior target detection and viewing separation, ease of operation, and higher level of navigational peace-of-mind. With zero radiation hazard, it’s the safest choice for more boats, including fishing, sports/cruising and sail boats.

  • Instant On™: Solid-state technology produces an immediate, accurate on-screen image, without the lengthy warm-up delay of magnetron pulse radars.
  • Low Power Consumption: Ideal for boats of any size – sail, cruise or fish.
  • Automatic Clarity: Proven automatic harbor/marina and offshore modes.

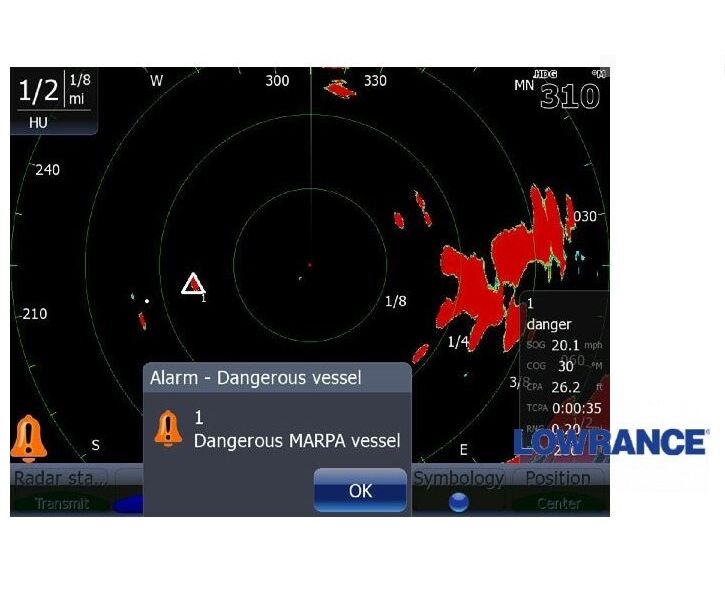

  • MARPA Target Tracking: Track up to 10 targets. Requires a heading sensor.*
  • Radar/Chart Overlay: Merges radar with cartography in a detail-rich display.*
  • Crystal-Clear Image: Fantastic for tight maneuvers in marinas or in conditions of limited visibility.

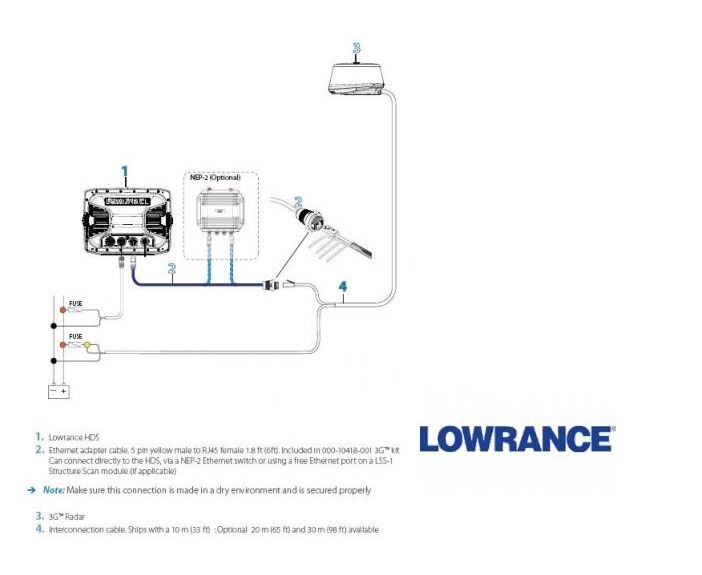

  • Quick Installation: No reason to open the dome, no tune or zero-mile adjustment, and no radar-licensed technician required.
  • Safe: Extremely Low Emissions. Safer than any other radar currently on the market and emitting less radiation than a mobile phone so it can be mounted anywhere.
  • High-Speed Mode: Select 36 RPM for almost instant updating at less than 2 nm.
  • Dual Guard Zones: Protect yourself from more angles.



Antenna Beam Width Horizontal5.2°+/-10% (-3dB width)
Antenna Beam Width Vertical25°+/-20% (-3dB width) °
Antenna Receiver Noise Figure6 dB
Antenna Rotation Speed36 rpm +/- 10% RPMs
Radar Warm Up Time0 min
Radar Wind Resistance51 m/sec (Max:100 Knots)
Transmitter FrequencyX-band - 9.3 to 9.4Ghz
Transmitter Power Output(at antenna port) 100mW nominal
Max Range Scaleup to 24nm


Data I/O ProtocolHigh Speed Ethernet


MountingBolts 4x30xM8 - 304 stainless steel
Waterproof StandardIPX6
Height280 mm 11 in
Diameter488 mm 19.2 in
Weight7.4 kg 16.31 lbs.
Humidity+35°C (95°F) 95% RH
Operating Temperature-25° to +55°C (-13° to +130°F)


Power Supply9V to 31.2Vdc (12/24 Volt systems) Reverse polarity protection vDC
Power Consumption18W (Typ.) @ 13.8Vdc
Power Consumption Standby2W (Typ.) @ 13.8Vdc – only 150ma
