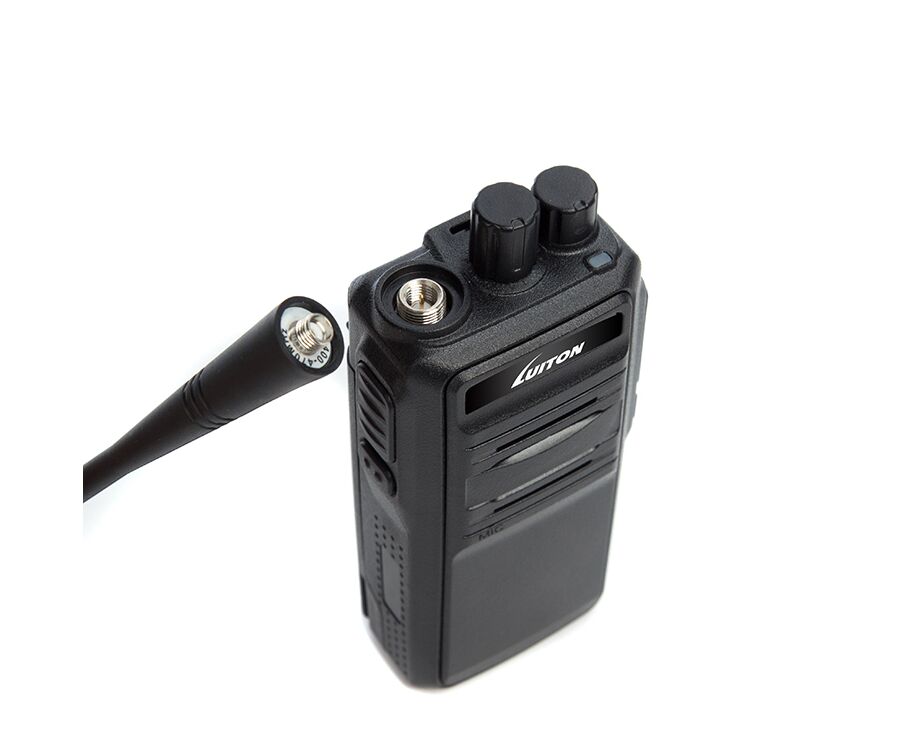

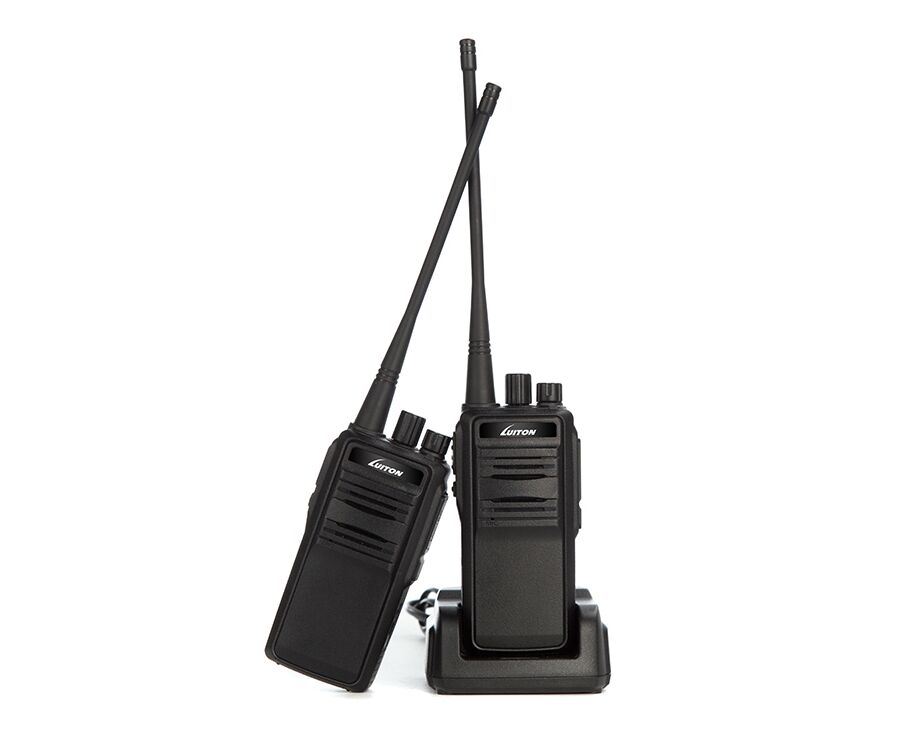

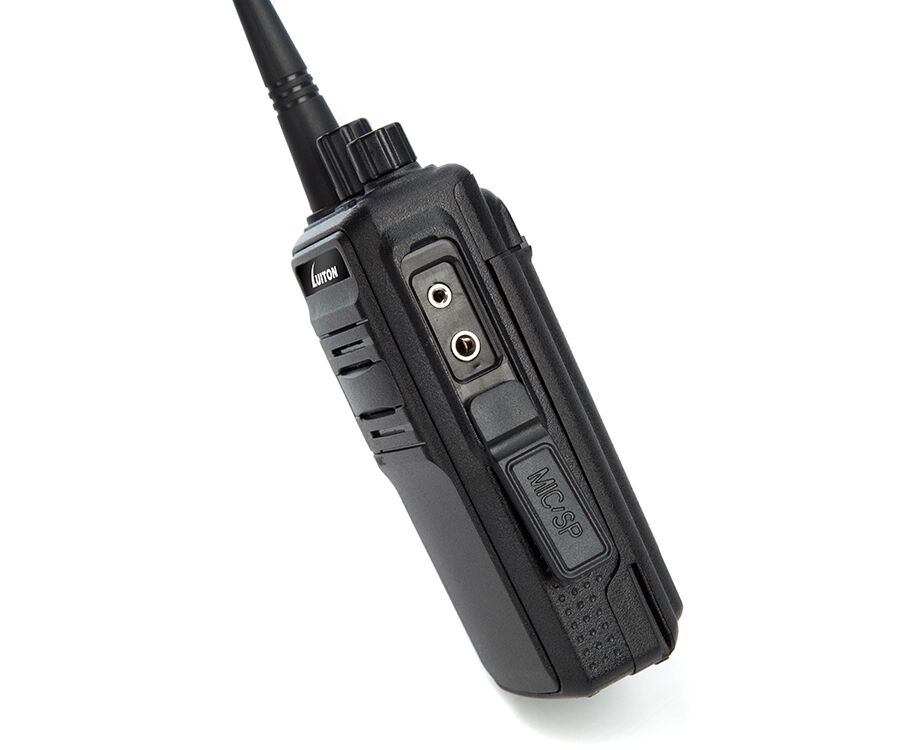

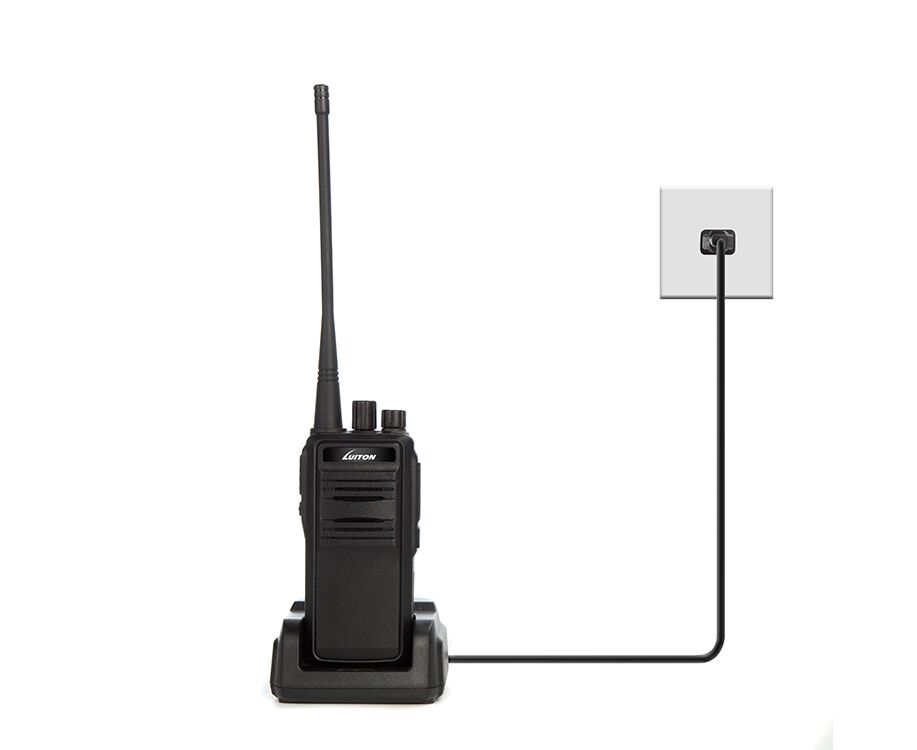

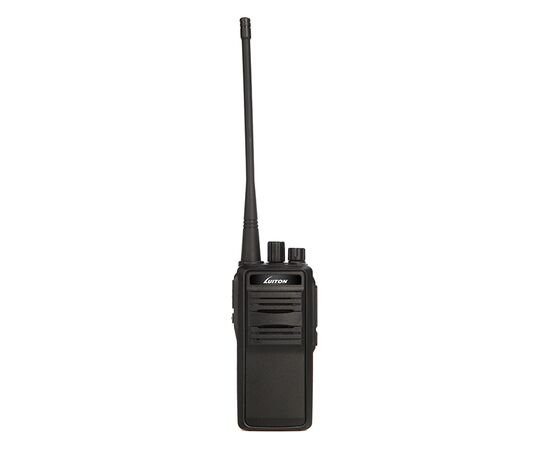

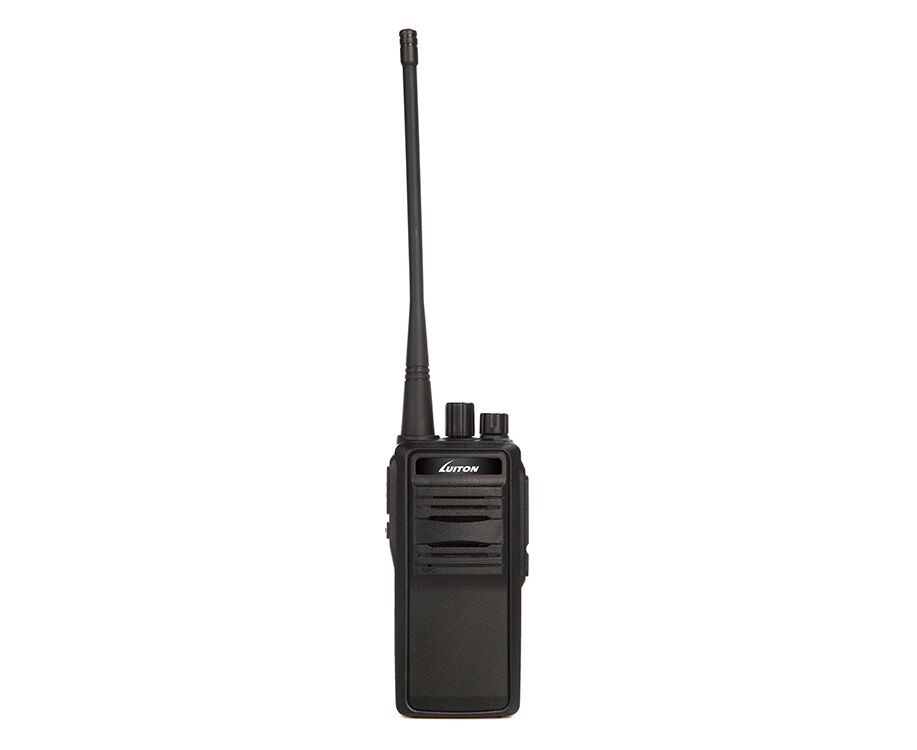

Luiton LT-5188
Luiton LT-5188, LT-5188 - prekės aprašymas
Main Features:
CTCSS/CDCSS Custom codec
Auto Battery Save
1 group Scrambler
Voice Companding function
Digital subsonic Frequency hopping function
Chinese/English voice frequency
Wide /Narrow Band setting
High/Low Power Switchable
Low voltage alarm function
Emergency alarm function
VOX function
|
General |
|
|
Frequency Range |
400-480MHz |
|
Channel No. |
16 |
|
Channel Spacing |
12.5/25KHz |
|
Voltage |
3.7V |
|
Battery |
1200mAh(Li-Ion) |
|
Frequency Stabilization |
±2.5ppm |
|
Operating Temperature Range |
-20°C~+60°C |
|
Antenna Impedance |
50Ω |
|
Dimensions(H*W*D,not include antenna and battery) |
126*58*38mm Antenna length: 150mm |
|
Weight(include antenna and battery) |
198g |
|
Transmitter |
|
|
Modulation Type |
F3E |
|
Spuirous and Harmonic |
60dBc |
|
SignalL-Noise Ratio |
45/40dB |
|
Audio Distortion |
≤5% |
|
Modulation restrictions |
±2.5 @ 12.5KHz; ±5.0 @25KHz |
|
Audio Response(300-3000Hz) |
+1 to -3 dB |
|
Receiver |
|
|
Sensitivity |
≤0.30/0.20µV |
|
Adjacent Channel Selectivity |
60dB |
|
Intermodulation |
60dB |
|
Spurious Response Rejection |
65dB |
|
SignalL-Noise Ratio |
45/40dB |
|
Rated Audio Output Power |
500mW |
|
Rated Audio Distortion |
≤5% |
